FX Loop Pro may look a bit intimidating when you first check it out—but it really just has three sections:

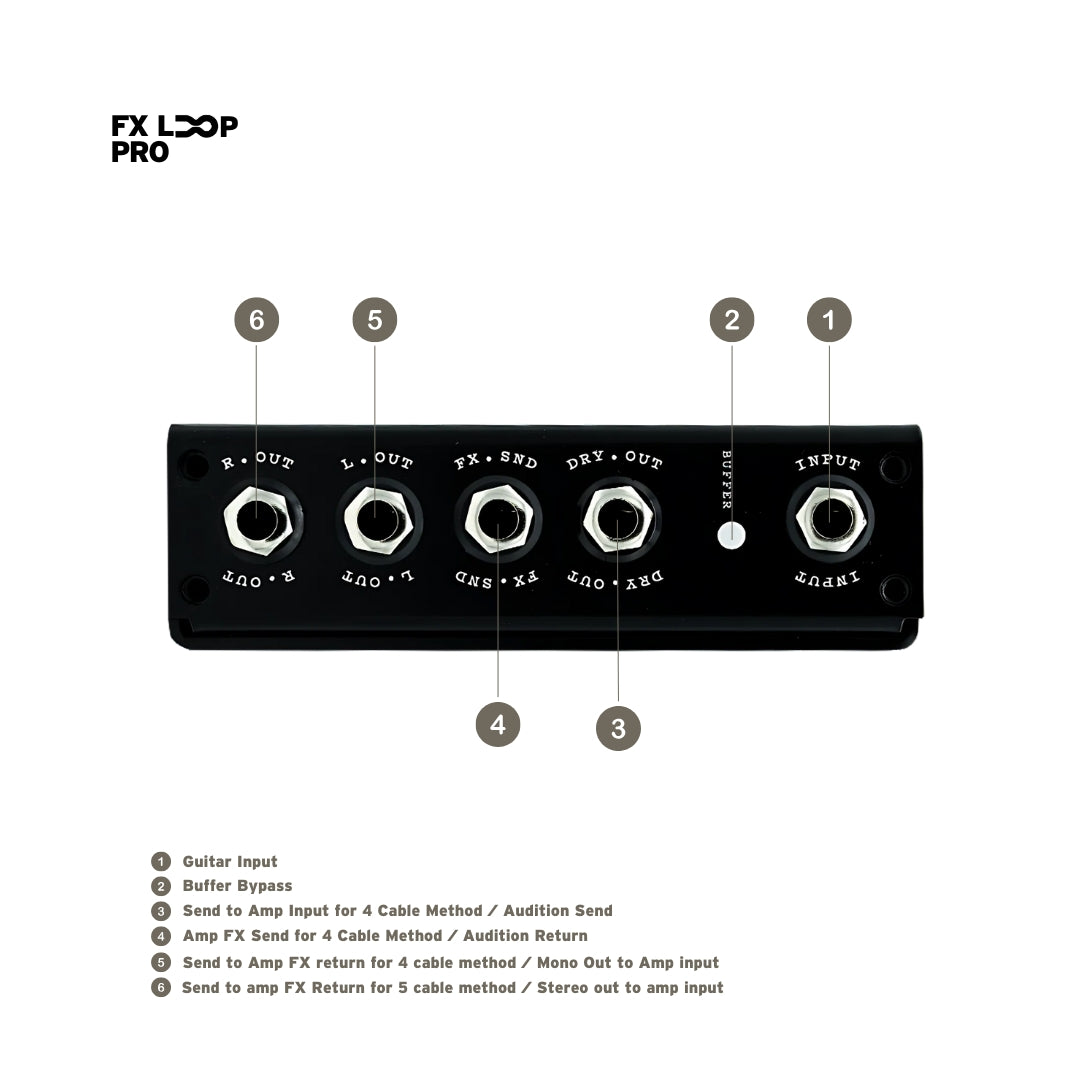

1. Your guitar’s input. Plug in here and send signal to your first pedal (dry effects) and, if you choose, an always-on tuner out.
2. The Audition Section. Patch this section anywhere you like in your signal chain. To try out a new pedal, plug a pedal/amp into the Dry Out (to pedal/amp input) and FX Send (from pedal output/amp FX Send) jacks. Signal is now being sent to this pedal/amp in your signal chain!
3. The Output Section. This is where you can isolate the ground on your final outputs, invert phase, and decide if you’re running mono, dual mono, stereo, 4-cable, or 5-cable method.
If running 4-cable method, plug one of the outputs into your amp’s FX Return jack.

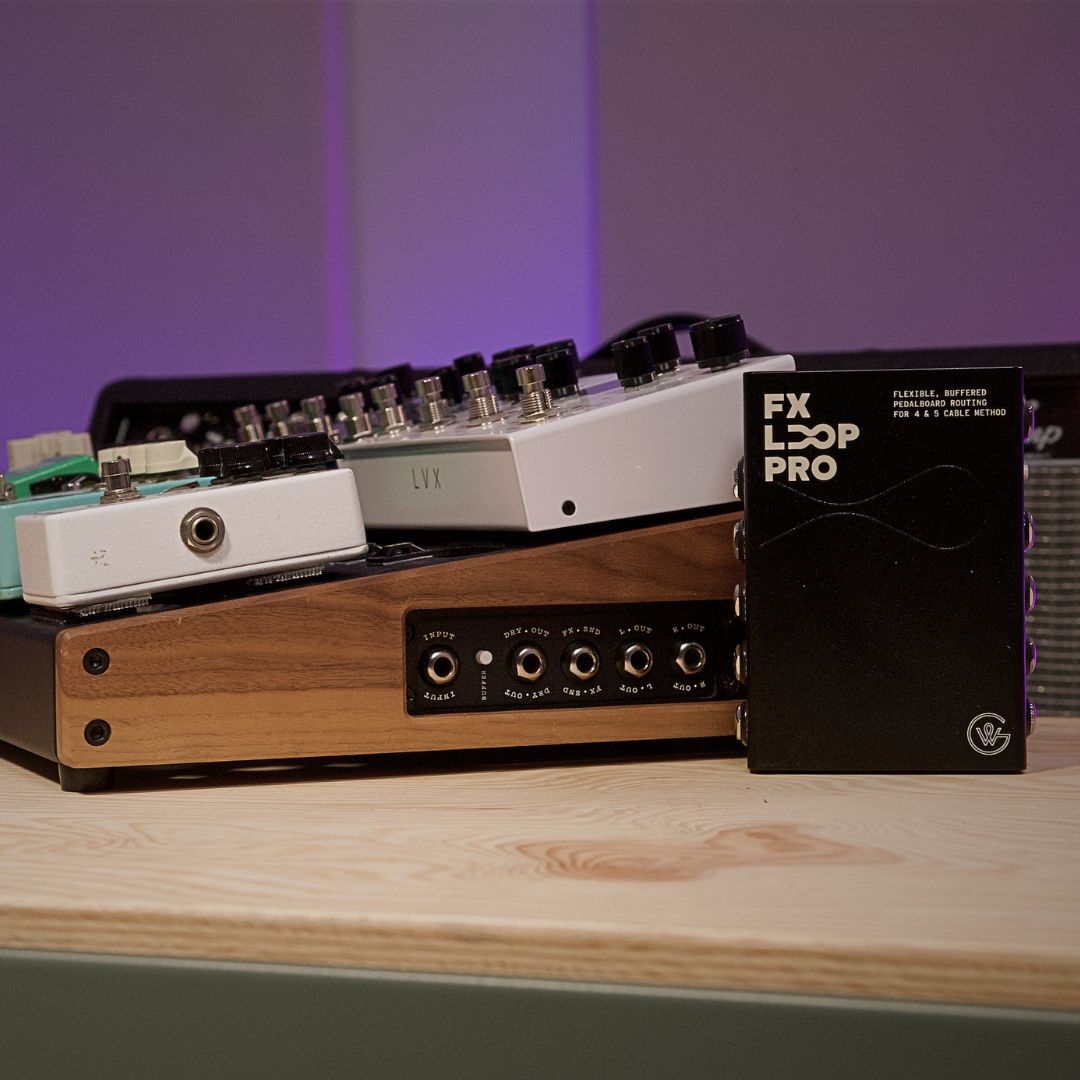

Yes - FX Loop Pro is purpose built for Creation Music Company pedalboards! Whether you have an Elevation, Creation Music Riser or even a Custom Shop board - FX Loop Pro mounts easily with 4 screws.
Save space while getting more flexibility, a cleaner signal and less noise with FX Loop Pro!
Creation Custom Pedalboard
Creation Elevation V3
Creation Aero & Riser
SUMMING WITH FX LOOP PRO

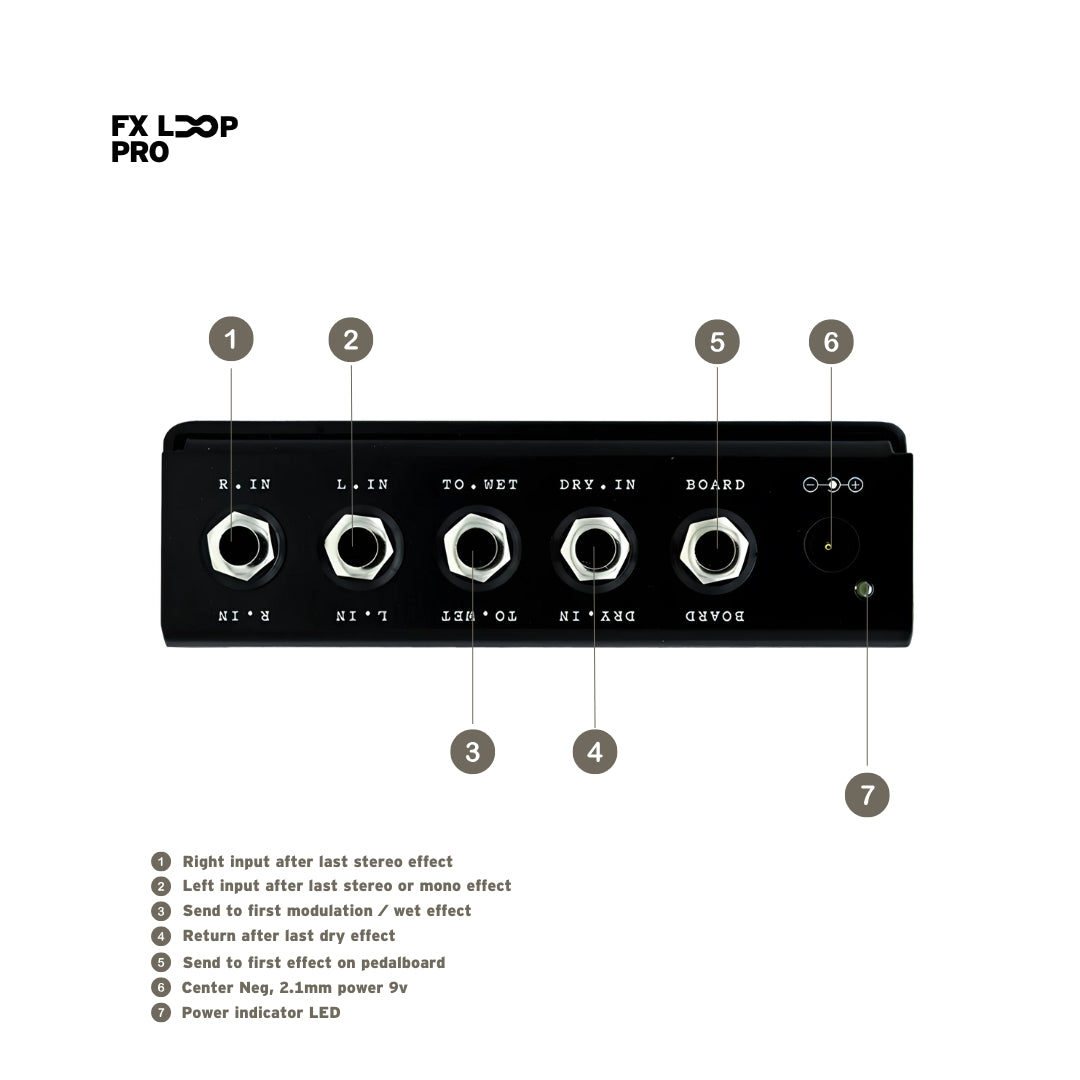

Using a stereo pedalboard: Run stereo into the Left and Right inputs — get true stereo signal out of the left and right outputs.
-
Stereo to Dual Mono: Hit the Sum pushbutton — Now the left and right inputs are merged. This merged signal is sent to both left and right outputs.
-
2-Channel Line Mixer: Use FX Loop Pro as a two channel line mixer. Send two different signals - a dry and wet signal as an example - into the Left and Right inputs respectively. These signals will now mix and send this mixed signal out of the left and right outputs
-
Mono Input to All Outputs: Plug into Left input only — LongLine will buffer and split this signal to both the 1/4" and XLR outputs.
-
Independent Line Drivers: Plug into Left input only — FX Loop Pro will buffer and split this signal to both the left and right outputs.
GROUND LIFT & PHASE CORRECTION
1. Ground Lift: A ground loop sounds like a loud buzz in your rig when you're running more than one output or sometimes even just 4 cable method! Now you can easily get rid of these annoying noises by pressing FX Loop Pro’s black LIFT pushbutton.
If running 4 cable method - try running FX Loop Pro’s Right output to your amps FX Return if you’re getting a ground loop - now you can take advantage of the ground lift!
If running 4 cable method - try running FX Loop Pro’s Right output to your amps FX Return if you’re getting a ground loop - now you can take advantage of the ground lift!
2. Phase Correction: Fix phase cancellation between amps or amp sims by pressing the red Phase button. This inverts the polarity of the right 1/4" output by 180 degrees. This works well for amp sims and tube amps alike!
Want more details?
FEATURES
SPECIFICATIONS
HOW TO CONNECT FX LOOP PRO
4 Cable Method
Use either the 1/4" or XLR outputs to send directly to your amp inputs. If using XLR, make sure to send to RCV to convert from XLR back to instrument leads before your amp inputs!
5 Cable Method
Use either the 1/4" or XLR outputs to send directly to your amp inputs. If using XLR, make sure to send to RCV to convert from XLR back to instrument leads before your amp inputs!
Audition a Pedal
If you love the sound of your tube amp, but don't want to carry around multiple amps for Wet/Dry - Try this! Run the tube amp for the core of your tone (your dry sound). Then run an amp sim on your wet effects only. Now you can run any amp on your wet effects via your amp sim and blend that on top of your core tube amp as your dry signal.
Audition a Stereo Pedal
Use LongLine for bass. Run a parallel bass setup with your full frequency clean bass signal and your effected signal sending straight to the sound desk! Now you can retain the bottom end of your bass on the clean channel and add texture with the effected channel.
Mono
If you love the sound of your tube amp, but don't want to carry around multiple amps for Wet/Dry - Try this! Run the tube amp for the core of your tone (your dry sound). Then run an amp sim on your wet effects only. Now you can run any amp on your wet effects via your amp sim and blend that on top of your core tube amp as your dry signal.
Dual Mono
Use LongLine for bass. Run a parallel bass setup with your full frequency clean bass signal and your effected signal sending straight to the sound desk! Now you can retain the bottom end of your bass on the clean channel and add texture with the effected channel.
4 Cable Method w/ Parallel Wet FX
Use LongLine for a hybrid Electric / Acoustic pedalboard. By adding an AB switch, you can use LongLine for both instruments on one pedalboard!
