LongLine
XLR line driver + isolator
Send quiet XLR, 300 feet, in stereo
Fits Creation V3 boards
LongLine
XLR line driver + isolator
Send quiet XLR, 300 feet, in stereo
★★★★★ reviews coming soon
$259.00 USD
- Free US, CA & AU shipping
- 2 year warranty
- 30 day money back
- XLR out up to 300 ft
- Mono or stereo
- Ground lift, phase, sum, pad
- Bolts to Creation V3 boards
Is this for you?
Yes if you're on a Creation V3 board and need to send XLR directly from your board: amp sims straight to the desk, or tube amps with RCV.
No if you only need on-board buffering and routing (that's FX Loop Pro), or you're not on a Creation V3 board.
Not sure? Email us.
Send signal 300 feet
Send mono or stereo XLR up to 300 feet, dead quiet, to front of house or real tube amps using RCV.
Flexible routing
Use LongLine as two independent XLR outs or in stereo. Pair with the 1/4" outs for exciting routing options never seen before with a stereo DI.
Dial it in
Ground lift, phase, sum and a 10 dB pad. Now you can kill ground loops, fix polarity issues and set your output level.
How to connect
Stereo Amp Sim
Stereo Tube Amps
Electric + Acoustic
Parallel bass
Mono: sim + tube amp
Wet dry: sim + tube
A stereo rig into a stereo amp sim, straight to the desk for a silent stage.
Specs

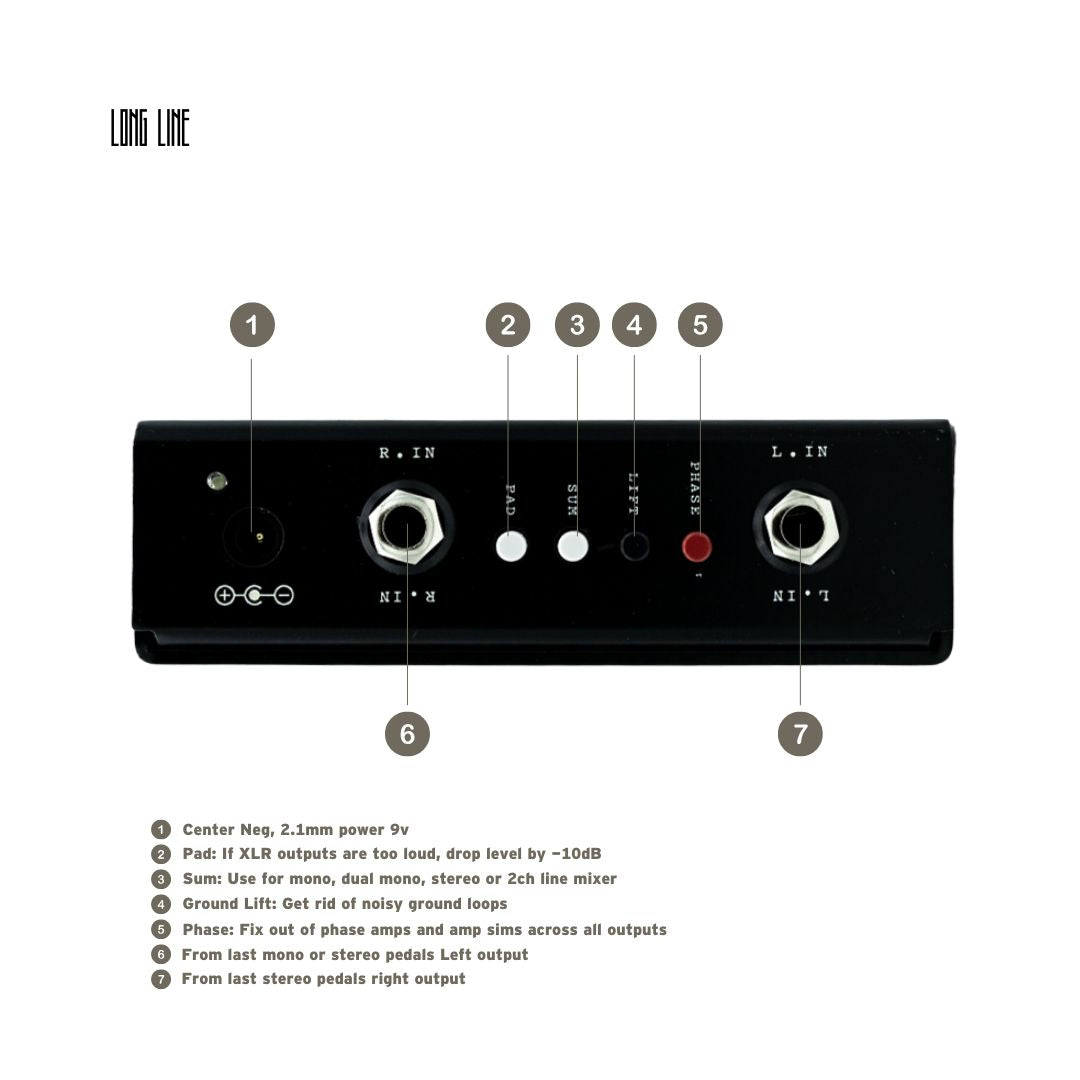

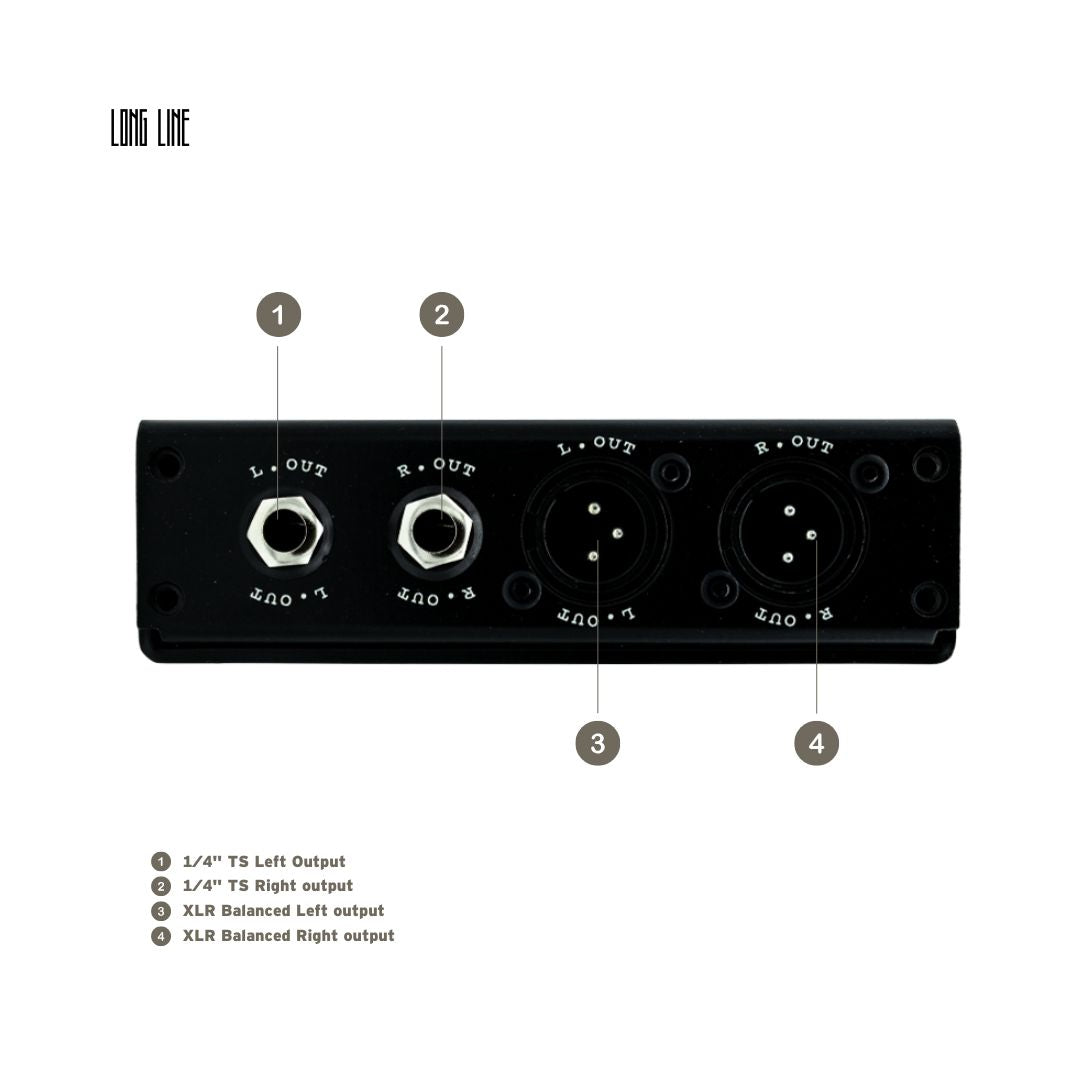

| Ins / outs | L.In (TS), R.In (TS), L.Out (1/4" TS), R.Out (1/4" TS), L.Out (XLR), R.Out (XLR) |
| Pushbuttons | Pad (-10dB), Sum, Lift, Phase |
| Isolation | Transformer isolation on the right 1/4" output |
| Ground lift | Left & right XLR outputs and right 1/4" output |
| Polarity invert | Right XLR output and right 1/4" output |
| Power | 9V DC, 2.1mm centre-negative, 75mA |
| Dimensions | 120 × 94 × 34 mm (4.72 × 3.70 × 1.34 in) |
| Weight | 450 g (0.99 lb) |
| In the box | Unit, 4 extra mounting screws, sticker and pic |
| Mounting | Bolts to Creation V3 pedalboards (custom shop boards included) |
| Warranty | 2 years |
| Price | $259.00 USD |
FAQ
Will it fit my board?
Mounts to Creation V3 pedalboards, custom shop included. If you're not on a Creation board, you can mount LongLine to your pedalboard as you would any other junction: hard mount it with screws, or use Dual Lock or Velcro to attach it to your board. We also have the TX Interfacer and many other junctions to consider if you're not on a Creation V3 board.

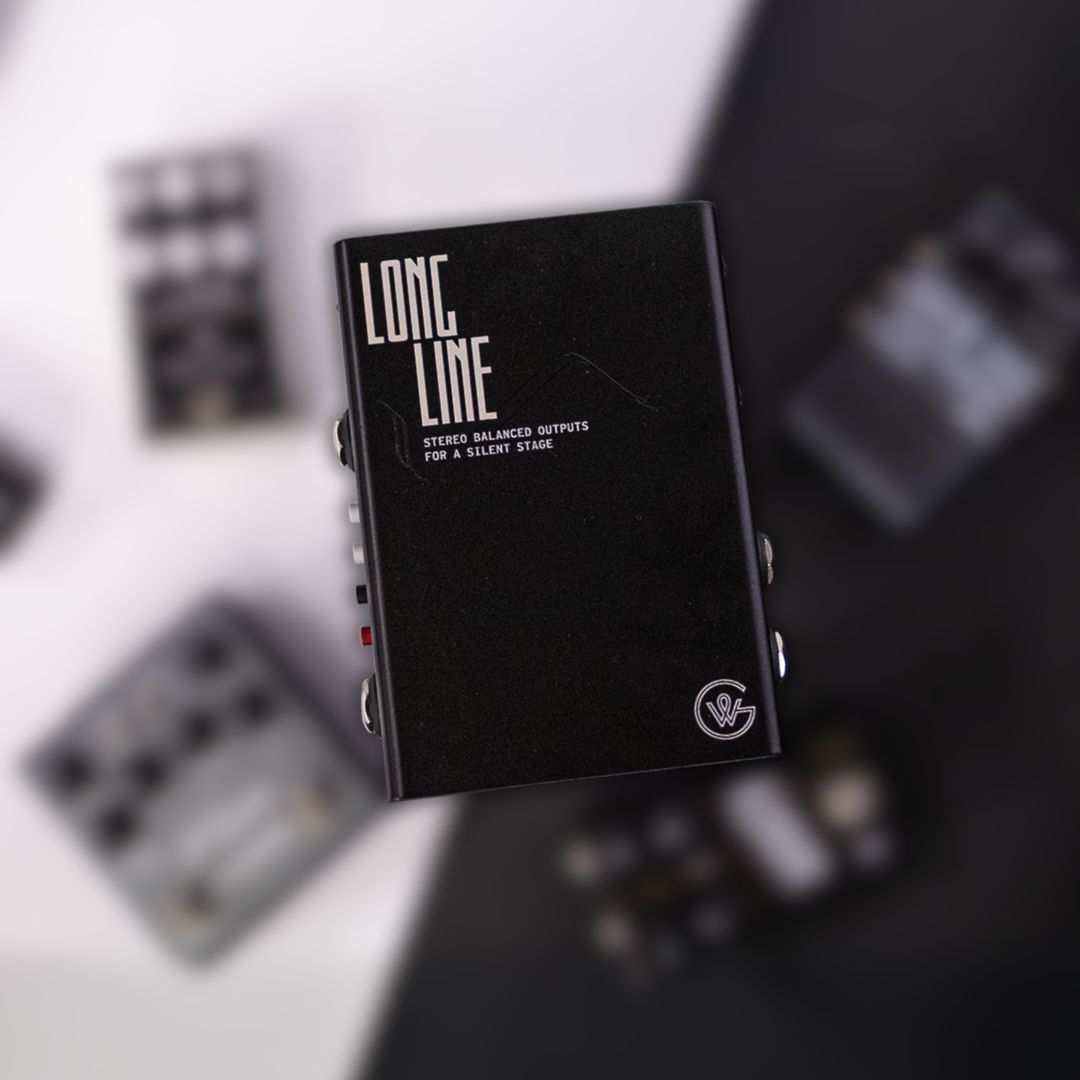

CMC LongLine vs LongLine?
These two units are exactly the same except for their enclosure. The CMC LongLine is purpose-built to bolt straight to a Creation V3 board. The standard LongLine is lower profile and easier to mount in tight places, so if you're not on a Creation board, go with the standard LongLine.
Do I still need a DI?
No. LongLine replaces the venue DI, sending balanced XLR straight to the desk with no -20dB cut, so you get a consistent, full-level sound venue to venue.
How does it compare to other balanced line drivers?
LongLine is the most flexible line driver on the market (see the routing diagrams above): tube amps, amp sims, 2 channel line mixer, buffered splitter and more, all while delivering studio grade buffering, noise floor and distortion specs. It's really quiet and transparent.
Mono or stereo?
Mono, dual mono, stereo and a whole bunch of other routing options are covered. See the routing diagrams above for more info.
